Ford F150 Raptor Gen2 19-20, 3.0, Internal Bypass, 0-2", Stage 6, Live Valve, Front Coil-Over, Pair

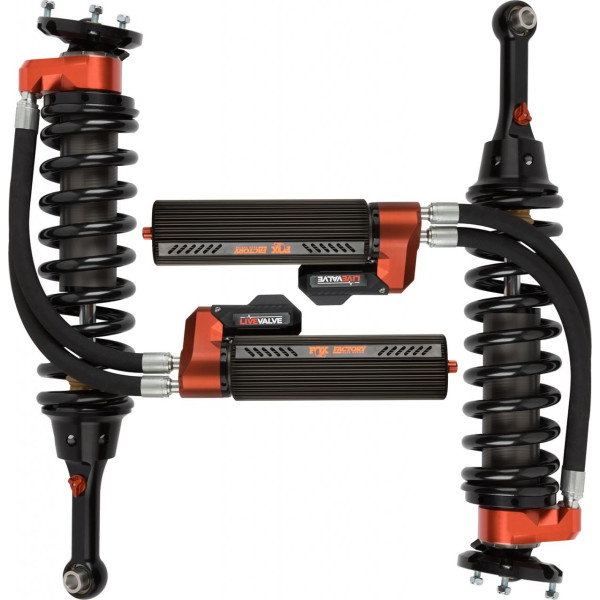

FOX Factory Race Series 3.0 Live Valve Internal Bypass Coil-Over (Pair) – Adjustable for Superior Terrain Control

Advanced Suspension Technology for Maximum Control

The FOX Factory Race Series 3.0 Live Valve Internal Bypass Coil-Over shocks take your Raptor's off-road capabilities to the next level with cutting-edge, Live Valve semi-active technology. Using vehicle sensors and accelerometers, these shocks adapt instantly to the terrain, improving handling, comfort, and bottom-out resistance in real time. With easy-to-use Quick Switch (QS3) adjusters, you can switch between three driving modes—On-Road Performance, On-Road Comfort, or Off-Road Performance—to match your driving style and conditions. Built tough with an external cooling system, these shocks stay cool even during intense off-road adventures.

Key Features of FOX Factory Race Series 3.0 Live Valve Internal Bypass Coil-Over Shocks

Live Valve Semi-Active Technology for Instant Adaptation
These shocks use Live Valve technology, which works with your vehicle’s sensors to instantly adapt to braking, steering, and acceleration inputs. This means you’ll always get the best handling, comfort, and control, whether you're cruising on the highway or tearing through the desert.

Three-Way Quick Switch for Easy Adjustment
The Quick Switch (QS3) adjusters let you easily choose from three settings: On-Road Performance, On-Road Comfort, or Off-Road Performance. This gives you full control over your vehicle’s suspension, so you can enjoy a smooth, comfortable ride or aggressive off-road handling at the flip of a switch.

Efficient Cooling for Peak Performance
The finned external reservoir system helps dissipate heat quickly, ensuring that your shocks maintain optimal performance even during long, demanding off-road drives. This prevents overheating and keeps your shocks working at their best.

Durability and Easy Installation

Durable and Lightweight Aluminum Body
The shocks are built from 3.0" hard-anodized, impact-extruded 6061-T6 aluminum, making them both lightweight and highly resistant to corrosion. This material weighs less than steel but is just as tough, ensuring your shocks will last through all kinds of rough terrain.

Rotatable Hose Fittings for Simple Installation
The shocks come with rotatable hose fittings, making installation easier by giving you more flexibility when routing the hoses. Plus, all reservoir mounting hardware is included, so you’ll have everything you need for a quick and easy install.

FOX Factory Race Series 3.0 Live Valve Coil-Overs: Engineered for Raptor Performance

Application-Specific Valving for Maximum Performance
These shocks are specifically tuned for the Raptor, providing the best possible performance in both on-road and off-road conditions. The hard-anodized 6061-T6 billet aluminum high-flow piston ensures smooth oil flow, giving you excellent control and handling.

Advanced Sealing System for Tough Conditions
The shocks feature a redundant sealing pack system with multiple seals (main seal, wiper seal, and scraper seal) to keep out dirt, water, and other contaminants. This keeps your shocks working smoothly and prevents leaks in the harshest environments.

Smooth Movement with PTFE-Lined Bearings
The PTFE-lined, heat-treated alloy steel spherical bearings allow for smooth and quiet movement, even in tough conditions, so your suspension remains stable and reliable over time.

Technical Specifications

• Body: 3.0" impact-extruded and CNC-machined 6061-T6 hard-anodized aluminum
• Travel: 7.89"
• Front Lift Height: 0-2"
• Extended Length: 28.49"
• Compressed Length: 20.6"
• Components: Anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 7/8" hard chrome-plated 17-4 H900 stainless steel
• Piston: Hard-anodized 6061-T6 billet aluminum high-flow race piston
• Valving: Application-specific to maximize Raptor performance
• Seals: Redundant sealing pack system (main seal, wiper seal, and scraper seal)
• Bearings: PTFE-lined, heat-treated alloy steel spherical bearings
• Top Mount: OEM
• Bottom Mount: Eyelet
• Fitment Notes: Reservoir mounting hardware included

Frequently Asked Questions (FAQ)

Q: How does Live Valve technology improve performance?
A: Live Valve technology uses vehicle sensors and accelerometers to instantly adjust your suspension based on braking, steering, and acceleration inputs. This helps maximize handling, comfort, and bottom-out resistance in real-time.

Q: What are the benefits of the Quick Switch (QS3) adjusters?
A: The Quick Switch (QS3) adjusters allow you to easily switch between On-Road Performance, On-Road Comfort, or Off-Road Performance settings. This gives you full control over your vehicle’s suspension, whether you're driving on the highway or off-road.

Q: Why is the external reservoir important?
A: The finned external reservoir system helps dissipate heat, preventing your shocks from overheating. This ensures your suspension stays at peak performance even during long, demanding off-road trips.
