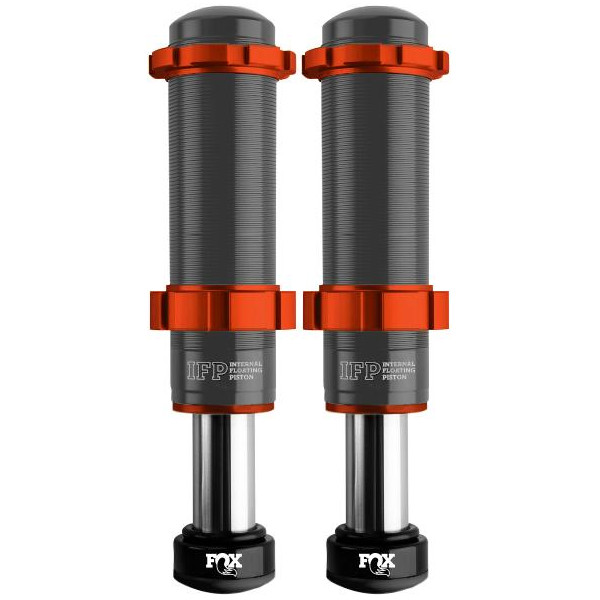

Jeep Wrangler JK 07-17 Factory Race Series, 2.0, Gen 2 Front Bump Stops, Pair

FOX Factory Race Series 2.0 Bump Stop IFP (Pair) - Optimized Damping for Extreme Off-Road Conditions

The FOX Factory Race Series 2.0 Bump Stop IFP is engineered to protect your vehicle's suspension during extreme off-road driving. With an aluminum body that dissipates heat faster than steel, and precision-tuned for specific vehicle applications, these bump stops deliver superior impact control, ensuring your vehicle can handle the most demanding terrain. Whether you're rock crawling or hitting high-speed trails, the Factory Race Series 2.0 Bump Stop IFP offers optimal performance and durability.

Key Features of FOX Factory Race Series 2.0 Bump Stop IFP

Vehicle-Specific Tuning for Maximum Impact Control
The FOX Factory Race Series 2.0 Bump Stop IFP is tuned for vehicle-specific applications, enhancing damping performance to protect your suspension from damage during heavy impacts. This ensures better control and stability in tough off-road environments.

Efficient Heat Dissipation with Aluminum Body
The black anodized 6061-T6 billet aluminum body is impact extruded and threaded for durability and heat dissipation. This design keeps the bump stops performing at peak levels, even in the most extreme conditions where other materials might fail due to heat buildup.

Superior Damping with Internal Floating Piston (IFP)
Equipped with a 1-1/4" hard chrome-plated 4130 steel shaft, the Internal Floating Piston (IFP) separates oil from high-pressure nitrogen gas, enhancing damping performance and response. This ensures the bump stop can handle sudden and heavy impacts without losing effectiveness.

FOX Factory Race Series Bump Stops: Built for Tough Terrain

Redundant Sealing System for Long-Lasting Durability
To ensure longevity, the Factory Race Series 2.0 Bump Stop IFP comes with a redundant sealing pack system that includes a main seal, wiper seal, and scraper seal. This multi-layer protection keeps out dirt and debris, ensuring smooth operation over time.

Precision Machined Aluminum Components
Both the body and components of the Factory Race Series 2.0 Bump Stop IFP are made from black-anodized CNC machined 6061-T6 billet aluminum, ensuring lightweight strength and resistance to wear and corrosion. The heavy-duty powdered steel piston and velocity-sensitive tunable valve shims further optimize the shock's response to different driving conditions.

Tunable Valving for Custom Performance
The velocity-sensitive deburred valve shims in the Factory Race Series 2.0 Bump Stop IFP allow for tunable valving, giving you the ability to fine-tune the bump stop for your specific driving needs. Whether you need more damping for slow-speed rock crawling or high-speed trail running, this bump stop adapts to provide the best performance.

Technical Specifications

• Body: Threaded, impact extruded, black anodized, CNC machined 6061-T6 billet aluminum
• Travel: 1.85"
• Front Lift Height: All
• Extended Length: 12.29"
• Compressed Length: 10.43"
• Components: Black anodized, CNC machined 6061-T6 billet aluminum
• Shaft: Hard chrome plated 1-1/4" 4130 steel with Internal Floating Piston (IFP)
• Piston: Heavy-duty powdered steel
• Valving: Tunable, velocity-sensitive deburred valve shims
• Seals: Redundant sealing pack system, main seal, wiper seal, scraper seal
• Top Mount: Threaded body
• Bottom Mount: None

Frequently Asked Questions (FAQ)

Q: How does the Internal Floating Piston (IFP) improve bump stop performance?
A: The IFP separates oil from nitrogen gas, which increases damping performance by preventing aeration and fade, ensuring consistent impact control under extreme conditions.

Q: Is the bump stop tunable?
A: Yes, the Factory Race Series 2.0 Bump Stop IFP features tunable, velocity-sensitive valve shims that allow you to adjust the damping performance based on your specific off-road needs.

Q: What material is the bump stop made from?
A: The bump stop body and components are made from black anodized 6061-T6 billet aluminium, which dissipates heat faster than steel and provides superior durability.

Q: What kind of sealing system does it use?
A: The Factory Race Series 2.0 Bump Stop IFP uses a redundant sealing pack system that includes a main seal, wiper seal, and scraper seal to keep out debris and ensure long-lasting performance.
